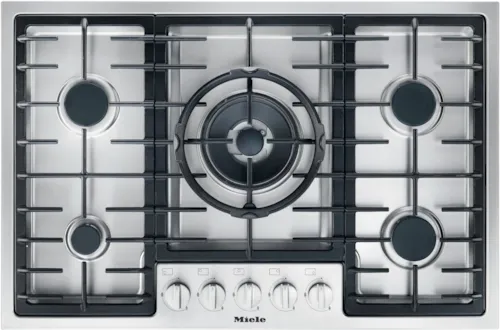

Miele 77cm Gas Cooktop KM 2334 with mono wok burner
Gas cooktop with a mono wok burner for special applications.
- Easy and direct controls – operation via rotary controls
- Professional design – 770 mm wide stainless steel trough
- Particularly versatile – 5 burners incl. 1 mono wok
- Extremely safe – GasStop function
- Easy cleaning – dishwasher-safe ComfortClean pot rests
Versatile burner configuration
Large variety of burner sizes for every application
Miele gas cooktops offer a wide range of burner sizes. Use small simmer burners for slow, gentle cooking. Use powerful wok burners for rapid boiling and large quantities of food.
Wok burner
Perfect wok kitchen with gas cooktops
Gas cooktops and wok cooking belong together. Miele offers the Mono wok burner with integrated power regulation for both flame rings. Alternatively, the Dual wok burner allows separate regulation of the two rings.
Individual design
A gas cooktop to suit every kitchen style
Choose a professional stainless steel look or elegant ceramic glass. Miele provides attractive designs for a customised kitchen environment.
ComfortClean pot rests
Efficiently protects and makes cleaning easier
These pot rests are dishwasher-safe. This makes maintaining the Miele gas cooktop simple and saves you valuable time.
Enamelled pot rests and burner parts
High quality features for a long life
Enamelled cast iron pot rests are robust and durable. Some models feature PerfectClean burner heads with non-stick coatings for easier cleaning.
GasStop
Automatic reignition for extra safety
Draughts or boiling pans can extinguish the flame. Electronics trigger an automatic reignition. If this fails, the gas supply shuts off immediately.

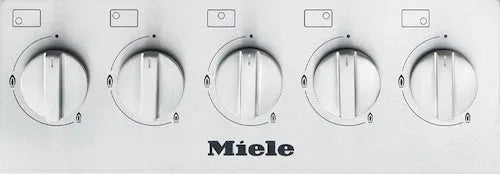

Front knob controls
Everything under control
Operate your appliance via durable plastic or metal controls. Power adjustments are easy, precise, and safe.
Electronic ignition and single-handed controls
Comfortably reignite the flame
Intelligent technology enables automatic ignition. Turning the dials during the ignition process requires only one hand.
Enamelled pot rests and burner parts
High quality features for a long life
Miele uses enamelled cast iron for pot rests to ensure durability. This high-quality construction is a sign of first-class engineering.
Specifications
Technical Data
| Dimensions (W x D) in mm
|
770 x 75 x 508 |
| Dimensions in mm (width) |
770 |
| Dimensions in mm (height) |
75 |
| Cut-out dimensions (W x D) with surface-mounted installation in mm |
750 x 490 |
| Dimensions in mm (depth) |
508 |
| Weight in kg |
11 |
| Total rated load in kW |
11.5 |
| Voltage in V |
230 |
| Frequency in Hz |
50-60 |
| Length of supply lead in m |
2 |
Cooking zone details
| Cooking Zone |
Position |
Type |
| 1st |
front left |
economy burner |
| 2nd |
rear left |
high speed burner |
| 3rd |
centred |
single wok burner |
| 4th |
rear right |
high speed burner |
| 5th |
front right |
standard burner |
User convenience
| Operation via sensor controls |
knob |
| Operation via dials |
Yes |
| Electronic ignition - single hand operation |
Yes |
Construction and design
| Heating type |
Gas |
| Independent of cooker |
Yes |
| Stainless steel trough |
Yes |
| Miele logo embossed in stainless steel |
Yes |
| Cast-iron pot rests (matt black enamelled) |
Yes |
Safety
