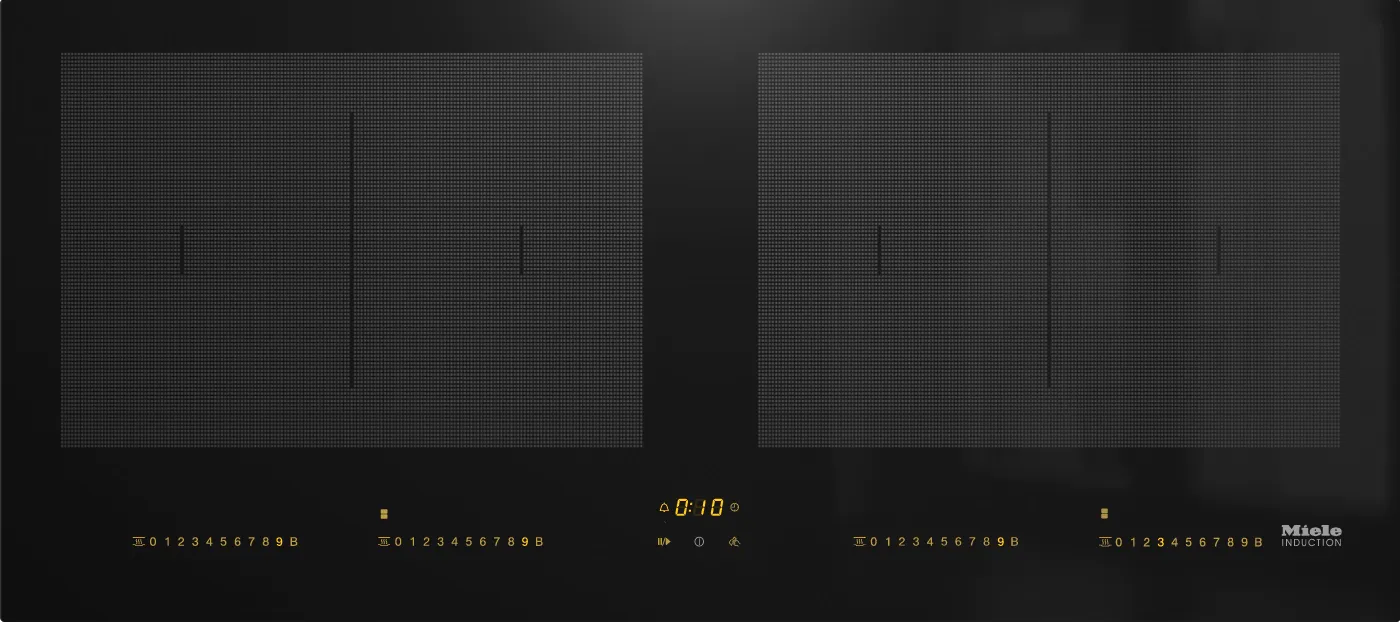

Miele 91.6cm Induction Cooktop KM 7684 FL

Description

Miele 91.6cm Induction Cooktop KM 7684 FL

Induction cooktop panorama design with two PowerFlex cooking areas for extra convenience.

  • Intuitive and quick selection via number sequences – Smart Select
  •  4 cooking zones incl. 2 high-power PowerFlex cooking areas
  • A width of 916 mm for surface-mounted or flush-fit installation
  • Shortest heating-up times – TwinBooster
  • Communication with the rangehood – automatic Con@ctivity function



Con@ctivity

Smart control
Concentrate fully on cooking: with Con@ctivity, your rangehood always knows exactly what to do. As soon as the cooktop is switched on or off, the rangehood responds automatically. The extraction power is automatically adjusted to what is happening on the cooktop, ensuring a pleasant room climate at all times. The appliances communicate with each other via WiFi. Con@ctivity allows you to integrate the rangehood and cooktop into Miele@home.


PowerFlex

Ideal for large pans

Our PowerFlex cooking zones offer the perfect solution for any situation: from individual items of cookware to particularly large pans – they can accommodate anything. At the same time, they offer substantial time savings: the booster output of up to 7.3 kW provides unbeatably fast heating.


TwinBooster

Booster function for rapid heating

For especially rapid heating: with Miele’s exclusive TwinBooster function, you can concentrate the power of 2 cooking zones into a single cooking zone if required. Or you can distribute the induction power individually for even more flexible cooking.


Safety functions

For greater safety and security
Best protection in every situation: the system lock provides reliable protection against accidental or unauthorised switching on. If a cooking zone has been operating at the same power level for an unusually long time or there is no pan on the cooktop, it will switch off automatically. The residual heat indicator is another useful feature: it reminds you not to touch the cooking zones when they are still hot.


Convenient additional functions

Added convenience
Added convenience when cooking: with the Stop & Go function all cooking zones can be reduced to power level 1 at the press of a button, allowing you to leave the cooktop unattended for a short time. The Keeping warm function keeps food at serving temperature. As an extra benefit, you can set the timer so the cooking zone switches off automatically when the time has elapsed. The Recall function ensures that your settings are saved for 10 seconds.


Permanent pan detection

Set down your pan and get cooking
All you have to do is switch on the cooktop – if there is already a pan on a cooking zone, the corresponding control element will be activated automatically. So there is no need to switch on the individual cooking zones manually. The size of the pan is also detected automatically to ensure particularly efficient energy usage.


Specification

Technical Data

Dimensions in mm (width) 916
Dimensions in mm (height) 51
Casing height incl. connection box in mm 51
Dimensions in mm (depth) 408
Cutout dimensions in mm with surface-mounted installation (W x D) 898 x 388
Cutout dimensions in mm with flush installation (W x D) 898 x 388
Weight (kg) 12
Total rated load in kW 7.3
Voltage in V 230
Frequency in Hz 50-60
Length of supply lead in m 1.4



User Convenience

Networking with Miele@home Yes
Automatic function Con@ctivity 3.0 Yes
Operation via sensor controls Smart Select
Display colour Yellow
Permanent pan recognition Yes
Pan and pan size recognition Yes
Stop & Go function Yes
Wipe protection Yes
Recall function Yes
Minute minder Yes
Safety switch-off Yes
Auto Heat-up Yes
Keeping warm Yes
Individual Settings Yes



Construction type

 Independent of cooker Yes



Design

Elegant glass ceramic surface Yes
Ceramic surface colour Black
Flush Yes
Surface-mounted installation Yes



Heating type

 Heating Type Induction





Cleaning Convenience

Easy-to-clean ceramic glass Yes



Safety

Safety switch-off Yes
Lock function Yes
System lock Yes
Integrated cooling fan Yes
Overheating protection Yes
Residual heat indicator Yes



Cooking zone details

 Number of cooking zones 4
Number of cooking areas 2
Maximum number of pans 4



PowerFlex cooking zones

 No. 4
Type PowerFlex cooking zone
Size in mm Ø 150 – 230
Max rating in W 2100
Max Booster power rating in W 3000
Max TwinBooster power rating in W 3650



Product form

Miele 91.6cm Induction Cooktop KM 7684 FL Induction cooktop panorama design with two PowerFlex cooking areas for extra convenience. Intuitive... Read more

Free pickup in our shop(s)

SKU: KM 7684 FL
Barcode: 11230310

$5,199.00 Incl. GST
