Description

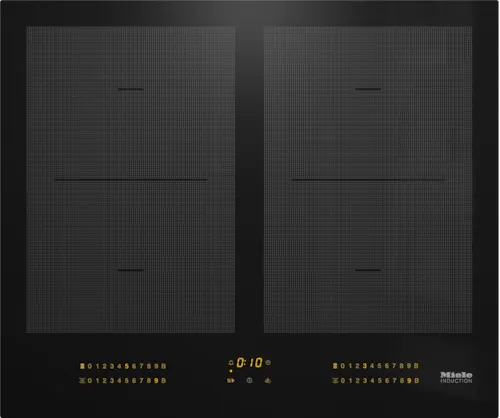

Miele 62cm Induction Cooktop KM 7564 FL
Induction cooktop with onset controls with 2 PowerFlex cooking areas for maximum power output.
- Intuitive and quick selection via number sequences – Smart Select
- 4 cooking zones incl. 2 high-power PowerFlex cooking areas
- A width of 620 mm for surface-mounted or flush-fit installation
- Seamlessly integrates with any SmartLine element
- Communication with the rangehood – automatic Con@ctivity function
Con@ctivity
Smart control
Concentrate fully on cooking: with Con@ctivity, your rangehood always knows exactly what to do. As soon as the cooktop is switched on or off, the rangehood responds automatically. The extraction power is automatically adjusted to what is happening on the cooktop, ensuring a pleasant room climate at all times. The appliances communicate with each other via WiFi. Con@ctivity allows you to integrate the rangehood and cooktop into Miele@home.
Safety functions
For greater safety and security
Best protection in every situation: the system lock provides reliable protection against accidental or unauthorised switching on. If a cooking zone has been operating at the same power level for an unusually long time or there is no pan on the cooktop, it will switch off automatically. The residual heat indicator is another useful feature: it reminds you not to touch the cooking zones when they are still hot.
Convenient additional functions
Added convenience
Added convenience when cooking: with the Stop & Go function all cooking zones can be reduced to power level 1 at the press of a button, allowing you to leave the cooktop unattended for a short time. The Keeping warm function keeps food at serving temperature. As an extra benefit, you can set the timer so the cooking zone switches off automatically when the time has elapsed. The Recall function ensures that your settings are saved for 10 seconds.
Permanent pan detection
Set down your pan and get cooking
All you have to do is switch on the cooktop – if there is already a pan on a cooking zone, the corresponding control element will be activated automatically. So there is no need to switch on the individual cooking zones manually. The size of the pan is also detected automatically to ensure particularly efficient energy usage.
Specification
Technical Data
| Dimensions in mm (width) | 620 |
| Dimensions in mm (height) | 51 |
| Casing height incl. connection box in mm | 51 |
| Dimensions in mm (depth) | 520 |
| Cutout dimensions in mm with surface-mounted installation (W x D) | 600 x 500 |
| Cutout dimensions in mm with flush installation (W x D) | 600 x 500 |
| Weight (kg) | 11 |
| Total rated load in kW | 7.3 |
| Voltage in V | 230 |
| Frequency in Hz | 50-60 |
| Length of supply lead in m | 1.4 |
User Convenience
| Networking with Miele@home | Yes |
| Automatic function Con@ctivity 3.0 | Yes |
| Operation via sensor controls | Smart Select |
| Display colour | Yellow |
| Permanent pan recognition | Yes |
| Pan and pan size recognition | Yes |
| Stop & Go function | Yes |
| Wipe protection | Yes |
| Recall function | Yes |
| Minute minder | Yes |
| Safety switch-off | Yes |
| Auto Heat-up | Yes |
| Keeping warm | Yes |
| Individual Settings | Yes |
Construction type
| Independent of cooker | Yes |
Design
| Elegant glass ceramic surface | Yes |
| Ceramic surface colour | Black |
| Flush | Yes |
| Surface-mounted installation | Yes |
| Can be combined with SmartLine | Yes |
| Can be combined with SmartLine downdraft extractor | Yes |
Heating type
| Heating Type | Induction |
Cleaning Convenience
| Easy-to-clean ceramic glass | Yes |
Safety
| Safety switch-off | Yes |
| Lock function | Yes |
| System lock | Yes |
| Integrated cooling fan | Yes |
| Overheating protection | Yes |
| Residual heat indicator | Yes |
Cooking zone details
| Number of cooking zones | 4 |
| Number of cooking areas | 2 |
| Maximum number of pans | 4 |
PowerFlex cooking zones
| No. | 4 |
| Type | Flex cooking zone |
| Size in mm | 150 - 230 |
| Max rating in W | 2100 |
| Max Booster power rating in W | 3000 |
| Max TwinBooster power rating in W | 3650 |
